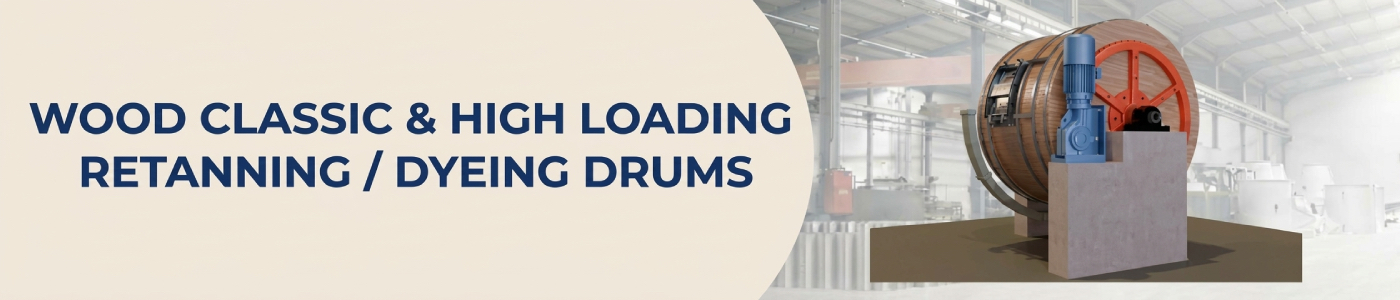

WOOD Classic Drums
| Specification | AGTW C-350 | AGTW C-500 | AGTW C-750 | AGTW C-1000 |
|---|---|---|---|---|
| Shaved WT. Loading (KG) | 350 | 500 | 750 | 1000 |
| Drum Speed (RPM) | 9 - 14 | 9 - 14 | 9 - 14 | 9 - 14 |
| Motor Power (H.P) | 15 | 20 | 30 | 40 |
| Drum Diameter (mm) | 2500 | 2500 | 3000 | 3000 |
| Drum Width (mm) | 2000 | 2500 | 2500 | 3000 |
| Overall Dimensions (mm) | W3500 D3200 H3200 |
W4000 D3300 H3300 |
W4500 D3700 H3700 |
W5000 D3700 H3700 |
WOOD High Loading Drums (Jumbo Configuration)
| Specification | AGTW H-500 | AGTW H-750 | AGTW H-1000 | AGTW H-1500 |
|---|---|---|---|---|
| Shaved WT. Loading (KG) | 500 | 750 | 1000 | 1500 |
| Drum Speed (RPM) | 5 - 7 | 5 - 7 | 5 - 7 | 5 - 7 |
| Motor Power (H.P) | 15 | 20 | 30 | 40 |
| Drum Diameter (mm) | 2500 | 2500 | 3000 | 3000 |
| Drum Width (mm) | 2000 | 2500 | 2500 | 3000 |
| Overall Dimensions (mm) | W3500 D3200 H3200 |
W4000 D3300 H3300 |
W4500 D3700 H3700 |
W5000 D3700 H3700 |
